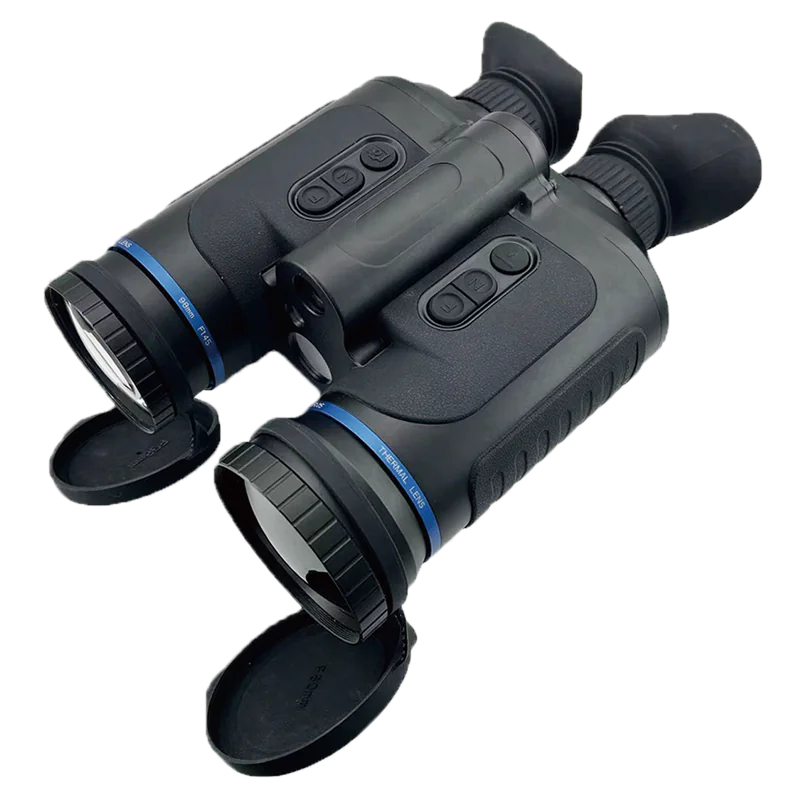

QML31 Multispectral Fusion Night Vision
The QML31 Multispectral Fusion Night Vision Binocular combines visible, low-light and infrared cameras to fuse images and deliver high-quality views both day and night. With integrated ranging and positioning, it can accurately calculate target distance and location, enhancing situational awareness in complex environments. The QML31 supports WiFi wireless transmission, image fusion, photo and video recording, and digital zoom, while its waterproof and dustproof housing ensures reliable performance in harsh outdoor conditions. Designed for hunting, exploration, law-enforcement and security tasks, it also supports OEM/ODM customization, making it a flexible solution for professional users.
Certified:
WlFl wireless transmission
lmage Fusion
Photography and video recording
Support digital scaling
Waterproof and dustproof
Product Assembly Demonstration
Key Parameters
| Parameter | Specification |
|---|---|
| Recognition Distance | Identify vehicles, Low light > 500m | IR > 1000m | Fusion > 1200m | Visible >1200m |
| Magnification | Low light, IR, Fusion: 2.5×; Visible: 5.8×; Digital magnification: 1×, 2× |
| FOV | Low light: 11.2°×8.4° | IR: 11°×8° | Visible: 8.4°×6.3° |
| Focus Adjustment | Low light, IR: motor drive | Visible: NO |
| Objective Lens | F98mm / F1.45; IR: F80mm / F1.05; 35mm / F5.6 |
| Image Resolution | Low light: 1920×1200 | IR: 1280×1024 | Visible: 2560×1920 |
| Photo Resolution | Low light IR: 1920×1200 @ 25fps | Visible: 1920×1440 @ 25fps |
| OLED Resolution | 1600×1200 |

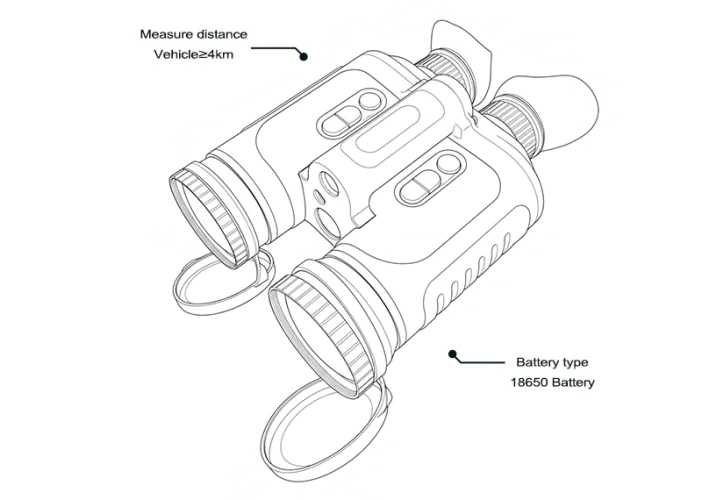

| Measure Distance | Vehicle ≥ 4 km |
| Position | Beidou / GPS |
| Power | 18650 batteries |
| Working Time | ≥6h (Normal temperature) |
| Waterproof | IP65 |
| Working Temperature | -40°C ~ +50°C |
| Weight | ≤2000g (including battery) |
| Size | 260mm × 215mm × 110mm |
