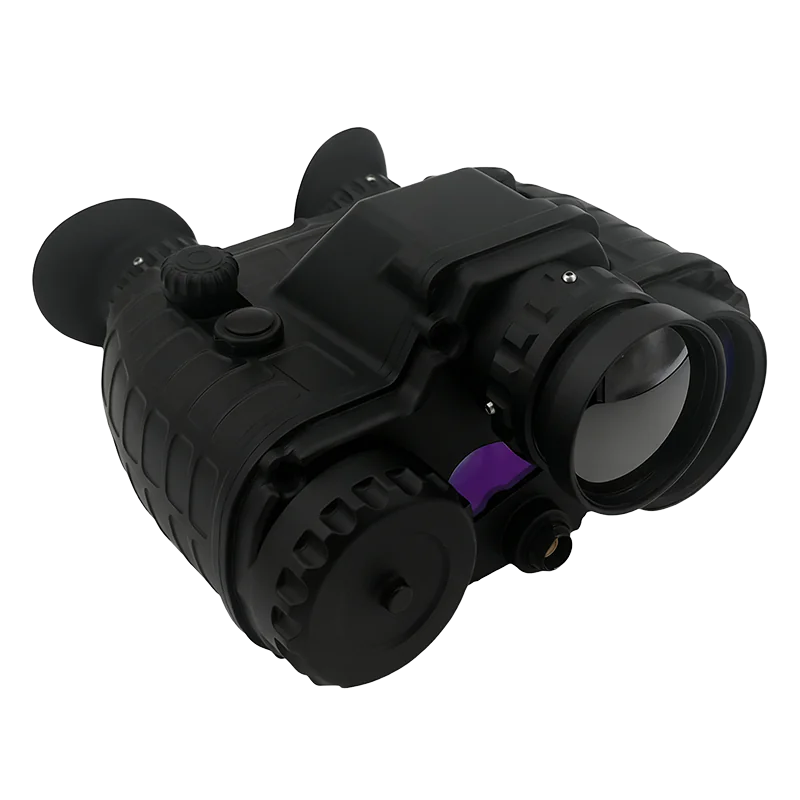

QMFT41200 Multispectral Fusion Night Vision
The QMFT41200 multispectral fusion night vision device provides multiple observation modes, including low-light, infrared, and dual-spectrum fusion, allowing users to adapt quickly to different environments. It supports both handheld and tripod-mounted day and night observation, offering reliable visibility and enhanced target identification in complex scenes. The device also includes range measurement capability for accurate distance calculation.
Designed with a compact and lightweight structure, the QMFT41200 integrates practical features such as voltage indication, highlight target mode, photography and video recording, picture and video output, and waterproof and dustproof protection. It performs well in outdoor, law enforcement, security, and exploration applications and supports OEM and ODM customization for various operational needs.
Certified:
Voltage indication
Hightight the target
Photography and video recording
Picture/Video output
Waterproof and dustproof
Product Assembly Demonstration
| Parameter | Value |
|---|---|
| Recognition Distance | No moon, identify vehicles: lowlight ≥500m, infrared ≥1200m |
| Magnification | Optics: 2.2X; Digital: 1–4X |
| FOV | ≥16°×12° |
| Diopter | -4SD ~ +4SD |
| Sensor resolution | Infrared:1024×768; Low-light:800×600 |
| Distance measure | min≤20m; max≥6km; accuracy ≤2m |

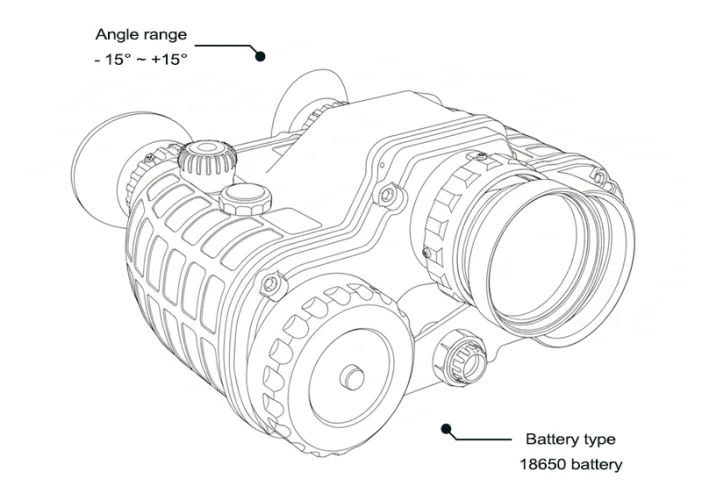

| Angle range | -15° ~ +15° |
| Record video | AVI, video refresh rate ≥24Hz |
| Picture format | BMP, picture count ≥10000 |
| Battery type | 18650 battery |
| Working time | ≥12h (Normal Temperature) |
| Waterproof | IP67 |
| Working Temperature | -40°C ~ +55°C |
| Display resolution | 1024×768 |
| Weight | ≤1kg (Including battery) |
| Size | 150mm×157mm×95mm |
