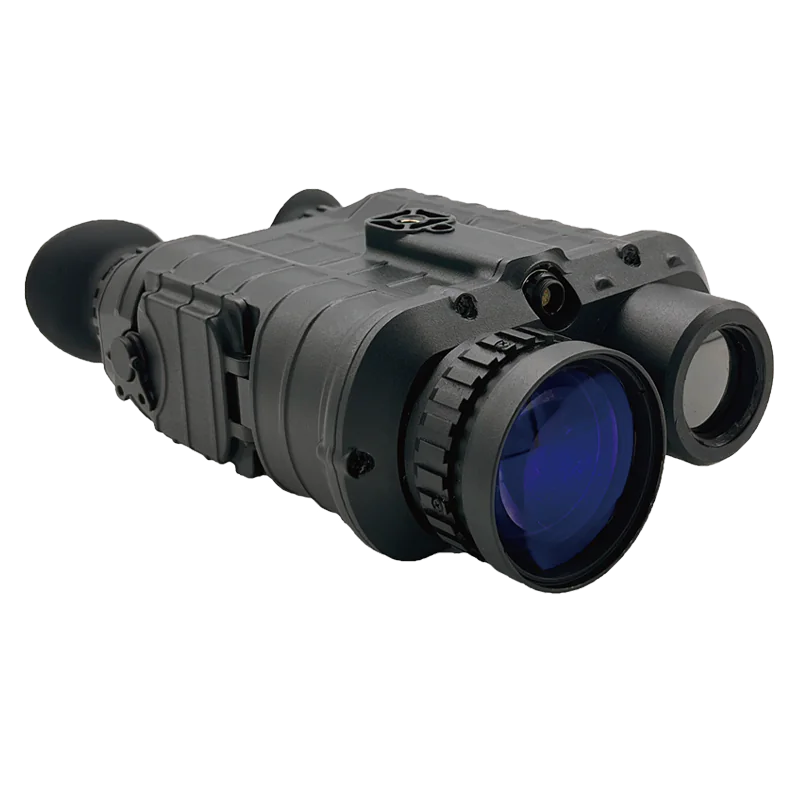

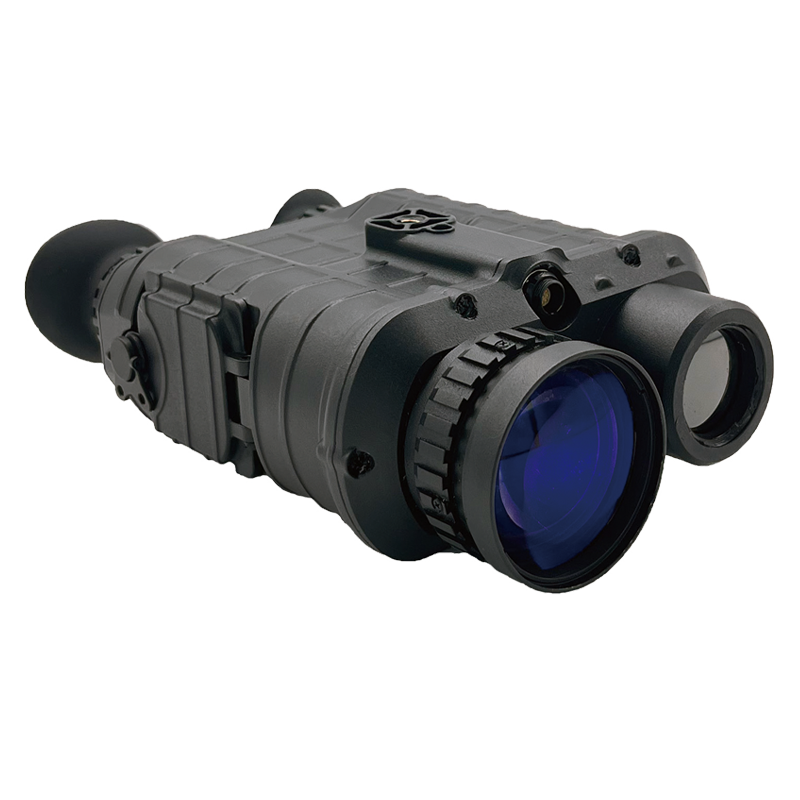

QMFT31000 Multispectral Fusion Night Vision
The QMFT31000 multispectral fusion night vision monocular is designed for day and night observation, integrating both low-light and infrared detectors to deliver clear imaging in a wide range of environments. With strong penetration capability through fog and atmospheric interference, it provides reliable visibility in challenging conditions. The device is compact and lightweight, offering four operational modes including low-light, infrared, black-and-white fusion, and color fusion to meet diverse field requirements.
The QMFT31000 supports essential functions such as voltage indication, reverse battery connection protection, photography and video recording, picture and video output, and durable waterproof and dustproof performance. It is suitable for hunting, exploration, law enforcement, and security applications, and supports OEM/ODM customization for different operational needs.
Certified:
Voltage indication
Reverse Battery Connect Protection
Photography and video recording
Picture/Video output
Waterproof and dustproof
Product Assembly Demonstration
| Parameter | Value |
|---|---|
| Recognition distance | No moon, identify vehicles: Low-light >450 m, IR >1000 m |
| FOV | >16° × 12° |
| Magnification | 2.2×, electronic zooming 1× ~ 4× |

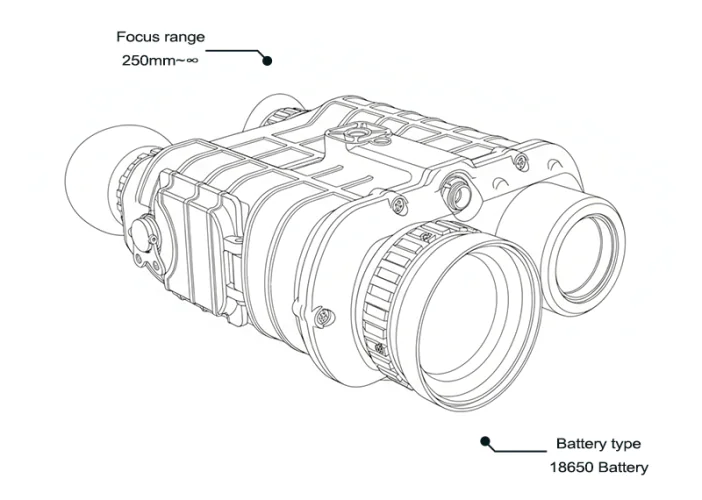

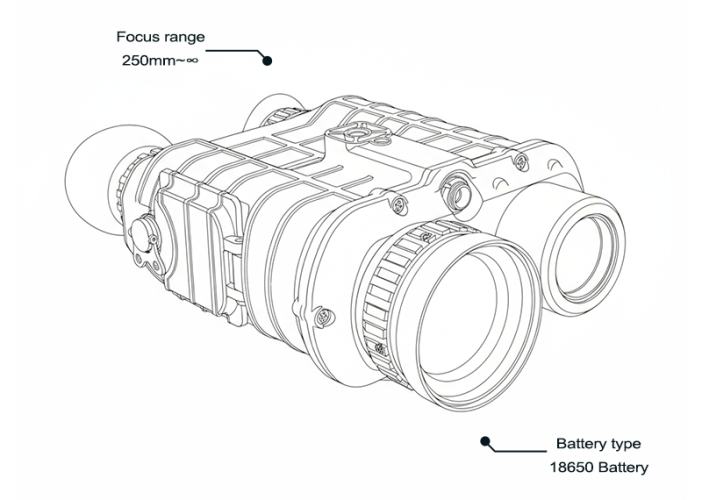

| Focus range | 250 mm ~ ∞ |
| Diopter | -6SD ~ +3SD |
| Low-light resolution | 800×600 |
| IR resolution | 640×512 |
| Display resolution | 1024×768 |
| Battery type | 18650 Battery |
| Working time | ≥6 h (Normal temperature) |
| Waterproof level | IP67 |
| Working temperature | -40°C ~ +55°C |
| Save temperature | -50°C ~ +70°C |
| Weight | ≤1.2 kg |
| Product size | 190 mm × 125 mm × 65 mm |
