NVG Accessories
Precision Optical Design
Built with all-glass and aspherical optical structure, delivering clearer imaging, lower aberration, and strong edge-to-edge performance
Wide & Stable Viewing
With a field of view of 40° or more and distortion controlled to low levels, it provides a wider and more natural image for night vision applications

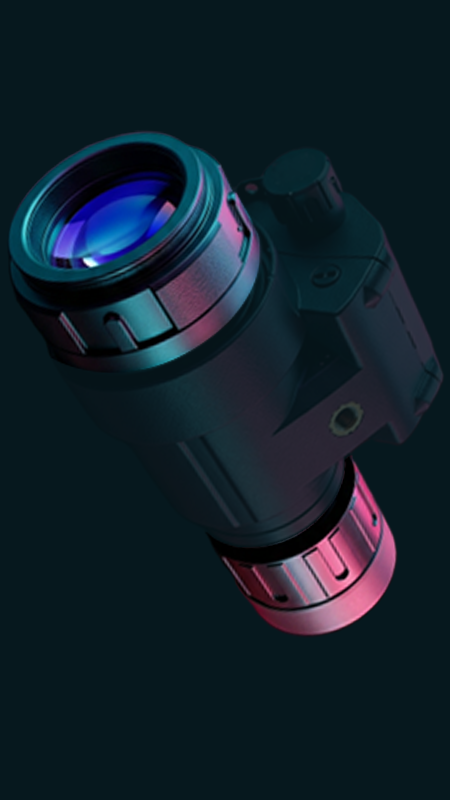

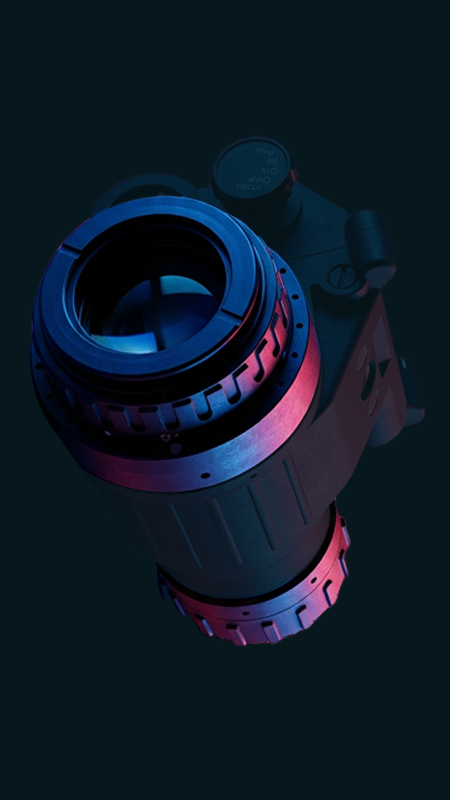

PVS14 LENS
High Light Transmission
Featuring a 25.1mm effective focal length and F1.23 large aperture, the lens group supports high transmittance for bright, sharp viewing in low-light conditions
Reliable Build Quality
Lightweight yet durable, with immersion resistance up to 20 meters for 2 hours, making it suitable for demanding outdoor and tactical environments
Performance Index
| Eyepiece Assembly : | |
| EFL | 5.1mm +/- 0.5mm |
| Exit pupil diameter | ≥14mm on axis |
| Exit pupil distance | 25mm |
| Field of view | ≥40° (for 17.5mm image format) |
| Lens material | Glass (include aspherical glass) |
| Distortion | ≤-5.5% (at semi-field angle of 20°) |
| Immersion | 20 meters for not less than 2 hours |
| Weight | ≤ 57 grams |
| Lighter Objective Assembly : | |
| EFL | 25.1mm +/- 0.5mm |
| F-Number | ≤1.23 |
| Field of view | ≥40° (for 17.5mm image format) |
| Lens material | Glass (include aspherical glass) |
| Distortion | ≤-4.7% (at semi-field angle of 20°) |
| Immersion | 20 meters for not less than 2 hours |
| Weight | ≤41.5 grams |
Product Features
| Eyepiece and Objective Assembly |
| Distortion: ＜1%, +/-0.5% at semi-field angle of 20° |
| Resolution: adapted to high resolution generation 3 intensifier |
| Magnification: 1× |
| Diopter focus: +2 to -6 |
| Field of view ≥40° (for 17.5mm image format) |
| Field of view ≥42° (for 18mm image format) |
