How Night Vision Goggles and Infrared Thermal Devices Work

Night vision goggles and infrared thermal devices use two different methods. They help people see in low-light or no-light situations.

Night vision goggles make low light, like moonlight or starlight, brighter. They use image intensifier tubes to create a visible image. Infrared thermal devices, on the other hand, find heat radiation from objects. They turn temperature differences into a visual display.

Night vision uses reflected light, while thermal imaging uses emitted heat. Because of this, the two technologies work differently in various environments. These include complete darkness, fog, smoke, camouflage, and long-range observation.

It is important to understand how these systems work and where they excel. This knowledge helps in selecting the best night vision solution. It is useful for military, law enforcement, security, search and rescue, and outdoor professionals.

Chapter 1 The Working Principles of Night Vision Goggles

1.1 Core Working Principle of Night Vision Goggles

Night vision goggles (NVGs) are special devices. They help us see in very low light. They take tiny amounts of light and turn them into a visible image.

Night vision goggles are different from infrared thermal devices. They do not detect heat. Instead, they use natural or artificial light. This light can come from starlight, moonlight, or reflected infrared light.

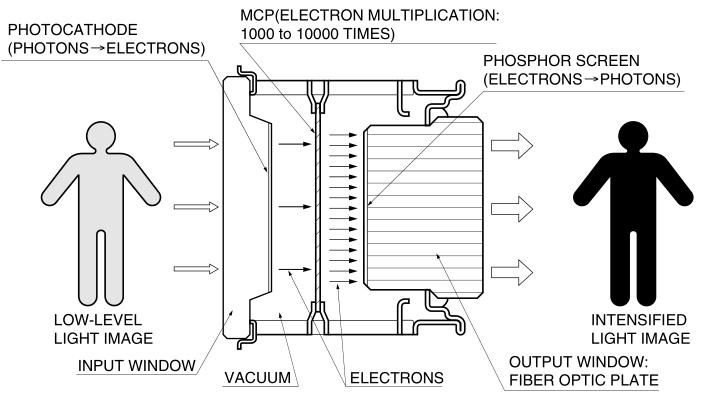

The core component of a night vision goggle is the image intensifier tube (IIT). When ambient light enters the device through the objective lens, photons strike the photocathode inside the image intensifier. These photons convert into electrons, and a microchannel plate (MCP) multiplies them. This electron multiplication process dramatically increases the signal strength while preserving the spatial detail of the original scene.

The system finally projects the amplified electrons onto a phosphor screen, where they convert back into visible light. This creates a bright, high-contrast image that viewers can see through the eyepiece. The green or white image seen in night vision comes from the type of phosphor used. This choice helps reduce eye strain and improves detail recognition during long use.

Because night vision goggles amplify reflected light instead of generating their own illumination, environmental conditions directly influence their performance. Factors such as ambient light availability, atmospheric clarity, and optical quality all affect image brightness, resolution, and contrast.

This reliance on natural light helps night vision goggles show fine details and depth perception. They also improve situational awareness in low-light areas. In these situations, thermal imaging may not provide clear texture or object definition.

In professional settings, modern night vision systems combine optical design, image intensifier performance, and user-friendly features. This balance helps provide clear visuals while keeping the user’s position hidden. These systems are essential tools in military, law enforcement, security, and outdoor operations.

1.2 Basic Construction of Night Vision Goggles and Overview of Common Models

Modern night vision goggles are fundamentally composed of two critical components: the housing and the image intensifier tube. The housing provides the mechanical structure, optical alignment, and mounting interface, while the tube determines the core imaging performance. In both military and civilian markets, housings and tubes come in many shapes. Manufacturers make different tubes to fit specific housing standards.

Housings and tubes are modular. This means that different housing can use the same image intensifier tube. A single housing design can support various tube generations. This depends on mission needs, budget, and availability.

Core Components

Housing

The housing contains the optical system, protects the tube, and interfaces with helmets, mounts, and accessories. Housing materials range from injection-molded polymers to CNC-machined aluminum alloys, affecting durability, weight, and long-term reliability.

Image Intensifier Tube

The tube is responsible for light amplification and image formation.
The tube defines performance parameters like signal-to-noise ratio, resolution, gain control, and phosphor type, not the housing.

Overview of Common Night Vision Goggle Models

PVS-5

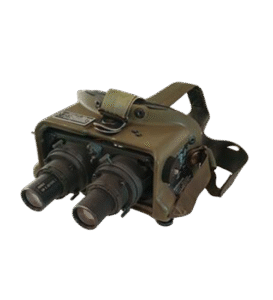

Soldiers commonly used the PVS-5 during the Gulf War. It is an early type of binocular night vision technology. Because of its old design, size, and performance issues, it is now rare in modern use and mostly outdated.

PVS-7

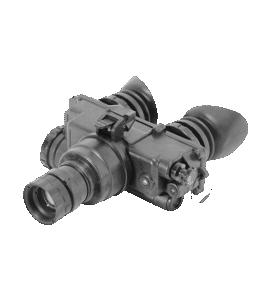

The PVS-7 comes from the Gulf War era. It has two eyepieces but uses one objective lens and one image intensifier tube. Although technologically outdated, it remains in service with some forces, including the Canadian Army. Engineers designed the PVS-7 to work with the MX-10130 tube.

PVS-14

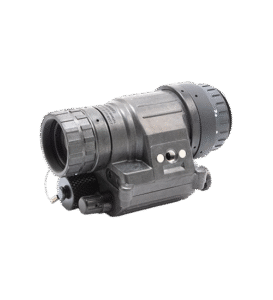

The PVS-14 is the most popular night vision device for civilians. It is also one of the most common monoculars in the world. The U.S. Marine Corps, U.S. Army, Canadian Army, and Canadian special forces currently receive it.

As the standard monocular night vision goggle, the PVS-14 serves as the foundation for nearly all later binocular systems. Engineers primarily construct it from injection-molded plastic, and it supports advanced tubes such as the MX-10160 and MX-11796.

MUM-14

The MUM-14 is a lighter monocular design developed based on the PVS-14 platform. It feels lighter, but many people think it is not as durable or reliable as the PVS-14.

PVS-18

The PVS-18 is similar to the PVS-14. It has a built-in dovetail arm. This lets you connect it directly to dovetail mounts without needing an extra adapter. It also adopts the upgraded lens design used in the PVS-15.

PVS-15

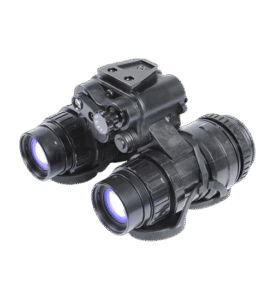

The PVS-15 is a night vision goggle. You make it by combining two PVS-14 optical systems. The PVS-15 has better lenses than the original PVS-14. U.S. forces widely deployed it during operations in Afghanistan.

A top-mounted swing mechanism adjusts the interpupillary distance. Although highly reliable, its excessive weight eventually led to its replacement by lighter systems.

AI Sentinel (Adam Industries)

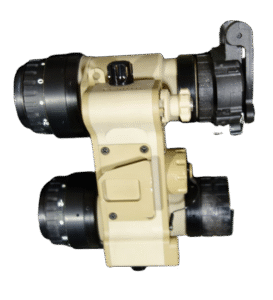

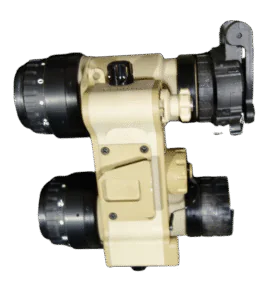

Several NATO special operations units currently use the Sentinel binocular system, which Adam Industries produced. Engineers construct it from CNC-machined aluminum alloy combined with polyoxymethylene resin, which offers exceptional durability.

The Sentinel is a bit lighter than the PVS-15. However, it does not have advanced features like gain adjustment. It only works with fixed gain. It supports all tubes compatible with the PVS-14.

AB Mod-3

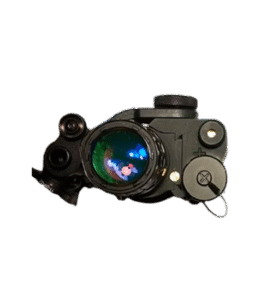

The AB Mod-3 is structurally similar to the Sentinel but designed as a lighter system. Its key advantage is its modular capability, allowing conversion from a binocular system into two independent monoculars.

While slightly less robust than the Sentinel, it offers significant weight savings and increased flexibility.

ACT DTNVG

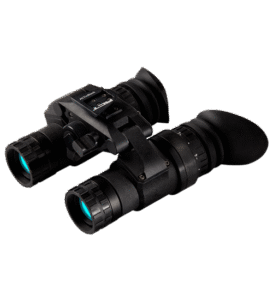

Made in Luxembourg, the ACT DTNVG is one of the lightest night vision binoculars. It weighs about the same as some monocular systems. One can flip one optical pod upward, effectively converting the device into a monocular configuration.

Although lighter than most U.S.-made housings, people generally consider its overall reliability somewhat lower. It supports all tubes compatible with the PVS-14.

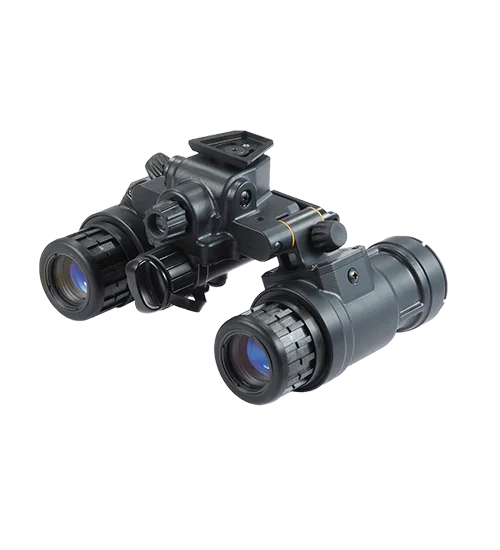

L3 PVS-31

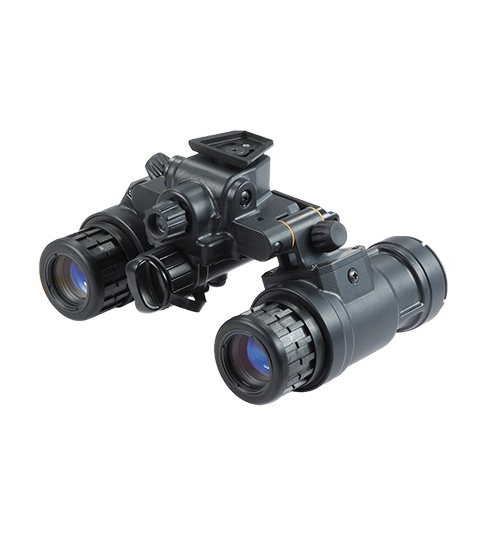

After recognizing the weight limitations of the PVS-15, L3 redesigned the platform, resulting in the PVS-31. This system has become one of the most widely issued night vision goggles among U.S. special operations forces.

The PVS-31 offers exceptional reliability while significantly reducing weight, representing the modern standard for military binocular night vision systems.

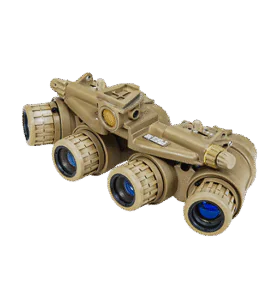

L3 GPNVG-18

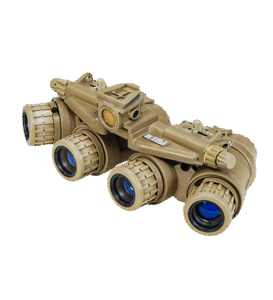

The L3 GPNVG-18 is a night vision goggle with four tubes. It greatly widens the user’s view. By widening the horizontal field of view, we can enhance peripheral awareness.

The usual field of view is 40 degrees. Increasing it to about 94 degrees makes a significant difference. This change allows for better awareness without needing to move your head.

This wide field of view makes the GPNVG-18 particularly suitable for vehicle operation, helicopter flight, and complex dynamic environments where situational awareness is critical. The GPNVG-18 has a complex optical design and high production costs. This places it at the high end of the night vision market. Specialized military units mainly use it because of its price.

Why Most Professional Users Still Prefer Binocular

Many professionals still like traditional binoculars. They prefer them even though panoramic systems, like quad-tube night vision goggles, provide a wider view. This preference stems from balancing operational practicality, weight, endurance, and system complexity rather than focusing solely on maximum visual coverage.

Panoramic night vision systems significantly increase situational awareness, but they also introduce higher weight, greater power consumption, increased mechanical complexity, and substantially higher cost. These factors can reduce long-duration comfort, increase fatigue during extended missions, and complicate logistics, maintenance, and training. People usually limit their use to very specialized roles. These include vehicle crews, aviation, or elite units in changing environments.

Modern binocular night vision goggles provide a good balance of field of view, depth perception, reliability, and comfort. Binocular systems have a standard 40-degree field of view for each channel. This gives good situational awareness for most ground operations. They are also lightweight and adaptable for different mission types.

For military, law enforcement, and professional users, binocular night vision platforms are the best choice. They offer reliable performance, long-lasting use, and flexible deployment options. This balanced approach has influenced the growth of modern dual-tube systems. It also shows why they are the top choice in today’s night vision market.

1.3 Binocular Night Vision Goggles

The Modern Evolution of Binocular Night Vision

Night vision technology has gotten better. Binocular night vision goggles have evolved from experimental designs to more practical ones. Modern development now focuses on creating systems that users can trust for long periods. These systems should work well in different environments and under real conditions.

Today’s binocular emphasize weight reduction, mechanical stability, and ergonomic balance. New housing materials and better design make modern systems strong. They also reduce stress on users during long use. Improved optical alignment and mounting interfaces further enhance consistency and ease of integration with standard helmet and support systems.

Equally important is the growing emphasis on modularity and tube standardization. Modern binocular housings support popular image intensifier formats.

This lets organizations choose or upgrade tubes based on their needs. They can consider performance, availability, or lifecycle planning without redesigning the whole system. This approach has become essential for professional users operating at scale.

The modern binocular night vision goggle is a good solution. It provides true depth perception and reliable situational awareness. It also has a simple design for most ground-based night operations.

A Typical Modern Binocular: Understanding the Role of the QVS3150

In this context, the QVS3150 is a typical modern binocular for night vision. It is designed for practical use, not just high specs. Its design aligns with the core priorities that now define contemporary dual-tube systems: balance, reliability, and adaptability.

The binocular follows a conventional binocular architecture optimized for stable optical performance and prolonged use. Instead of adding extra mechanical complexity, it stays compatible with standard tubes and common mounting interfaces. This allows it to fit easily into current night vision workflows.

This positioning places the QVS3150 in the operational center of the current night vision landscape. It does not attempt to replace specialized panoramic systems, nor does it rely on legacy heavy designs. Instead, it shows how modern binoculars should work. They need to support professional users who need reliable night vision for training, deployment, and regular tasks.

The QVS3150 shows why binocular night vision goggles are key to modern night vision systems. They are still the top choice before using other technologies like infrared thermal imaging.

Chapter 2 Infrared Thermal Imaging Devices

2.1 Core Working Principle of Infrared Thermal Imaging Devices

Infrared thermal imaging devices work by detecting the infrared radiation naturally emitted by objects and converting temperature differences into a visible image. Thermal imaging works without light. It can see in complete darkness, smoke, fog, or other unclear places.

Infrared Radiation: The Physical Basis of Thermal Imaging

All objects with a temperature above absolute zero (0 K) emit infrared radiation as a result of molecular motion. The wavelength of infrared radiation usually ranges from about 0.78 micrometers (μm) to 1,000 μm. Researchers mainly find thermal infrared radiation between 2 μm and 14 μm.

As an object’s temperature increases, the amount of infrared energy it emits also increases. This predictable relationship between temperature and emitted radiation forms the physical foundation of infrared thermal imaging.

Infrared Detectors: Converting Heat into Electrical Signals

Infrared thermal imaging devices are equipped with specialized infrared detectors designed to capture this emitted radiation. When infrared energy reaches the detector, the detector converts it into an electrical signal proportional to the detected temperature differences.

Common detector materials include semiconductor compounds such as mercury cadmium telluride (HgCdTe), which offer high sensitivity and fast response characteristics. These detectors enable the system to distinguish subtle thermal contrasts between objects and their surroundings.

Image Formation and Signal Processing

Through an optical system, incoming infrared radiation is focused onto the detector’s sensing elements. Onboard electronics process the resulting electrical signals to generate a thermal image.

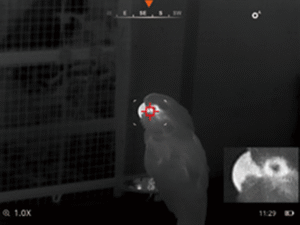

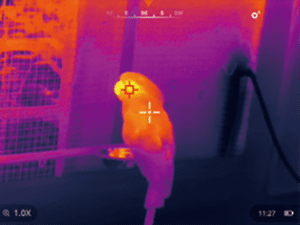

The image displays different temperatures using grayscale or false-color mapping. Warmer areas usually look brighter or have contrasting colors. Many people widely use false-color palettes to enhance readability and improve rapid target recognition under complex conditions.

Infrared Spectral Bands and Imaging Independence from Light

You can divide this spectrum into different bands based on the application and detector technology.

SWIR (Short-Wave Infrared)
MWIR (Mid-Wave Infrared)
LWIR (Long-Wave Infrared)

Thermal imaging depends only on temperature differences between objects and their background. It does not need visible or ambient light. As long as there is enough thermal contrast in the view, infrared thermal devices can create a clear image. This is true no matter the lighting conditions.

2.2 Main Market Forms and Application Scenarios of Infrared Thermal Imaging Devices

As infrared thermal imaging technology has improved, its market has grown. Many professional and civilian areas now use it, not just the military. Today’s engineers design thermal imaging devices in several distinct form factors, each optimized for specific operational needs, usage environments, and integration requirements.

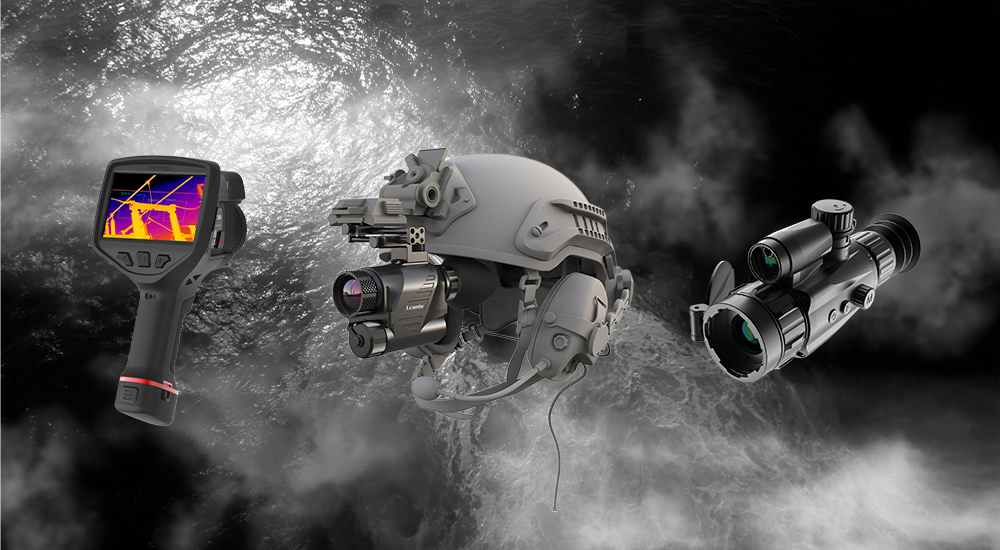

Common Market Forms of Thermal Imaging Devices

Handheld Thermal Imagers

Handheld thermal devices are widely used for observation, patrol, inspection, and search tasks. They are portable, easy to set up, and simple to use. This makes them great for security staff, search and rescue teams, wildlife monitors, and outdoor workers. These systems prioritize detection range, image clarity, and battery endurance.

Helmet-Mounted and Head-Mounted Thermal Devices

Head-mounted thermal imagers are designed for hands-free operation and real-time situational awareness. Military units, police teams, and tactical operators often use them. These groups need thermal vision while on the move. These devices emphasize compact size, low weight, and compatibility with standard helmet mounting systems.

Weapon-Mounted Thermal Sights

Weapon-mounted thermal sights allow users to detect and identify targets based on thermal contrast rather than visible features. Many people widely use them in military, law enforcement, and professional hunting applications. Stability, recoil resistance, and precise image alignment are critical factors in this category.

Thermal Fusion and Auxiliary Modules

Engineers design an increasing number of thermal systems as auxiliary modules that complement existing night vision equipment. Instead of replacing night vision goggles, these devices add thermal awareness. This helps overcome issues like camouflage, foliage, and low-contrast environments. This modular approach reflects a broader trend toward multi-sensor integration.

Application Scenarios and Operational Advantages

Infrared thermal imaging devices are especially effective in environments where visible or reflected light is unreliable. Thermal systems work well in complete darkness and other tough conditions. They detect heat that is emitted, not light that is reflected. This makes them effective in smoke, haze, and light fog, as well as when visibility is partially blocked.

Typical application scenarios include:

Military and Tactical Operations
Detection of personnel, vehicles, and equipment regardless of camouflage or lighting conditions.
Law Enforcement and Border Security
Surveillance, suspect tracking, and perimeter monitoring with reduced dependence on ambient light.
Search and Rescue
Locating people based on body heat in low-visibility environments or challenging terrain.
Outdoor and Wildlife Observation
Identifying animals or heat sources at night without active illumination.

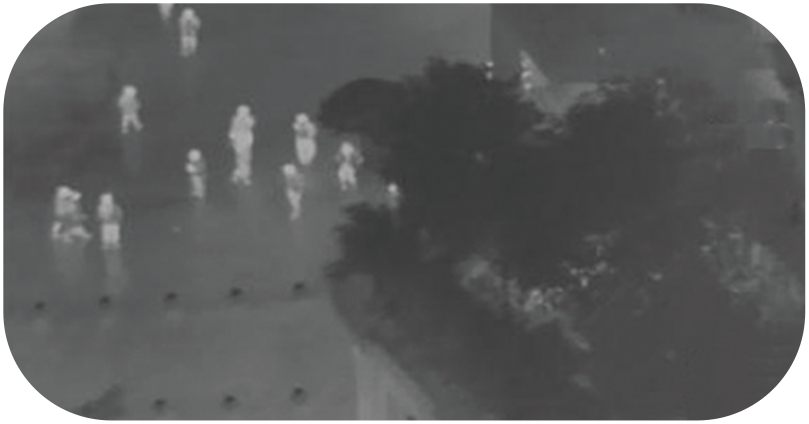

Thermal imaging is good at detecting things. However, it usually shows less detail and texture than night vision. Many professional users see thermal imaging as a helpful tool. They use it with night vision goggles, not as a full replacement.

This important role has helped integrate thermal imaging into night vision systems. This sets the stage for modern multi-sensor solutions in professional night operations.

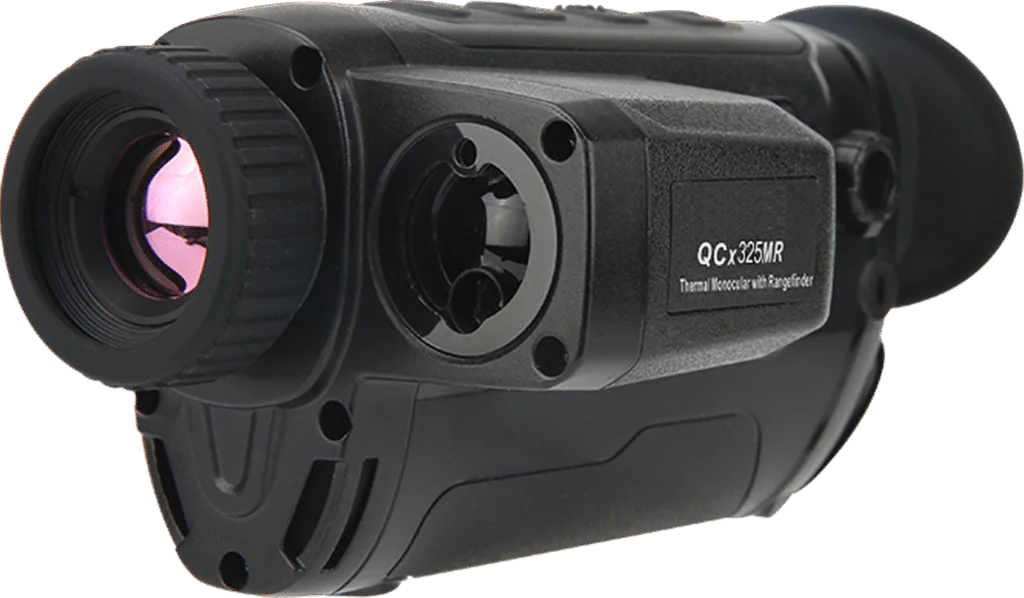

2.3 QCNV QC325 MR: Positioning as a Professional Thermal Imaging Device

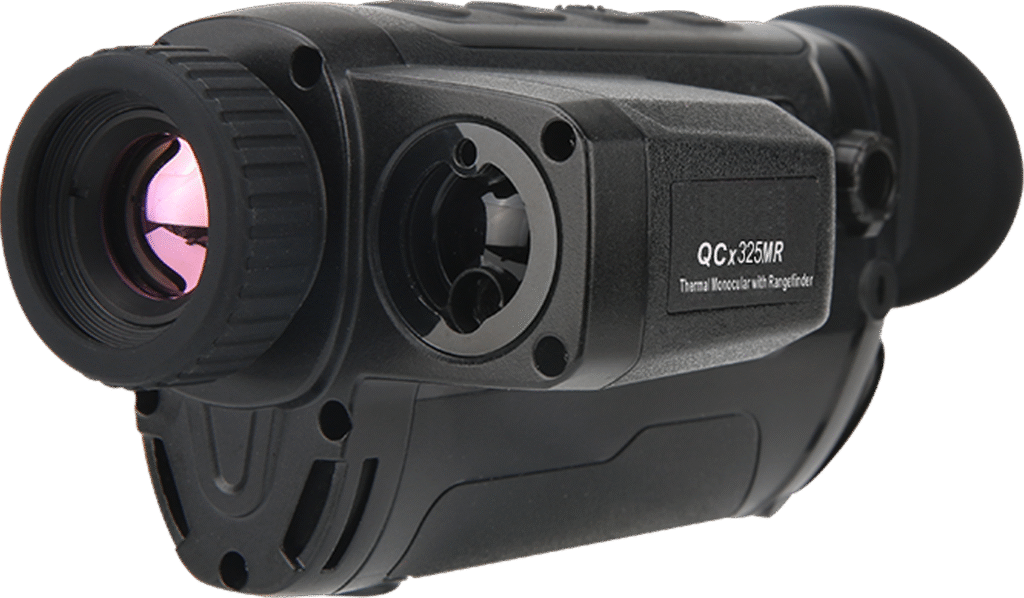

The QC325 MR is a professional-grade infrared thermal imager. Designers made it for practical field use, not for niche or experimental applications. Its configuration reflects the core expectations of modern thermal users: reliable detection capability, flexible deployment, and stable performance across varied environments.

From a functional standpoint, the designers created the QC325 MR to operate as a standalone thermal observation device. It supports handheld and tripod-mounted use, enabling both mobile observation and fixed-point monitoring. This flexibility aligns with real-world operational scenarios such as patrol, reconnaissance, search tasks, and extended observation sessions.

The device’s thermal imaging system aims for good target detection and clear thermal contrast. It does not just focus on high resolution.

The QC325 MR works in the long-wave infrared band. It uses passive heat detection, so it can function in total darkness. It also works well in poor visibility, where night vision may not be effective.

Another defining characteristic of the QC325 MR is its emphasis on situational usability. Features such as different color options and built-in image and video recording are helpful.

They allow for wireless transmission and range functions. These tools assist in making decisions in real-time. They are not just for post-processing analysis. These functions allow operators to document observations, share visual data, and assess distances without additional external equipment.

The QC325 MR has a strong and compact design. It is suitable for outdoor and professional use. We prioritize environmental sealing and impact resistance to ensure consistent operation under adverse weather conditions and during field handling. This design approach reflects a focus on operational continuity rather than laboratory conditions.

The QC325 MR is a modern thermal imaging device. It does not replace night vision goggles.

Instead, it works alongside them. This device improves detection where thermal contrast is important. Its role works well in multi-sensor night observation setups. This is especially true when used with binocular night vision for identification and navigation tasks.

Chapter 3 Conclusion: Integrating Night Vision and Thermal Imaging in Modern Operations

Night vision goggles and infrared thermal imaging devices address fundamentally different challenges in low-light and no-light environments. Night vision systems make use of available light to help us see better. They help us keep visual detail, depth perception, and spatial awareness.

On the other hand, thermal imaging detects heat to reveal targets that might remain hidden. This can include darkness, camouflage, smoke, or other visual blocks.

Because of these complementary characteristics, modern professional users rarely view night vision and thermal imaging as competing technologies. Instead, they increasingly deploy together—night vision provides navigation and identification capability, and thermal imaging enhances detection and awareness under complex conditions.

The continued dominance of binocular night vision platforms reflects this balance-driven approach. Lightweight and reliable dual-tube systems are the main support for most ground-based night operations.

People use thermal devices as standalone tools or extra sensors to handle specific environmental challenges.

In this framework, modern solutions are available. The QVS3150 binocular night vision and the QC325 MR thermal imaging device are examples. They show how advanced technologies can be used. Rather than pursuing extreme specifications, they align with real operational needs—reliability, adaptability, and sustained field performance.

As night operations evolve, professionals will use image-intensified night vision and infrared thermal imaging. These tools will change how they see and work at night.
